2024 China API Standard Float Collar and Shoe for Oil Well Drilling
Product Specifications
| Attribute | Value |
| Application | Oil field |
| Standard | API 5 CT |
| Material | Aluminum, steel |
| Core Components | Pressure vessel, float shoes, float collar, spring, plunger sealtop |
| Dimension (L*W*H) | 100-200mm |
| Weight | 20 KG |
| Warranty | 1 Year |
| Condition | New |
Key Features
- High abrasion resistance for extended durability
- Meets API 5 CT standards for oilfield drilling equipment
- Includes video outgoing-inspection and machinery test report
- Available with video technical support after warranty
- Multiple size options available (see specifications)
Company Profile
We (SWS) are a professional company engaged in the development, manufacturing, sales and service of downhole oil tools. Utilizing advanced downhole tool manufacturing technology from the U.S. and Canada, we provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields worldwide.
Our 78,000 sq ft manufacturing facility features modern CNC machining, fabrication and processing equipment, along with comprehensive testing and inspection facilities.
Main Products
Our product line includes float collars and shoes, stage collars, liner hangers, packers, cement plugs, cement heads, centralizers, casing and tubing, pup joints, and couplings.
Certifications
Product Description
Float equipment serves as the backbone of casing equipment used during primary cementing operations. It guides the casing to total depth and prevents contaminated mud from entering the casing. Additionally, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.
Technical Specifications
- Hi Flow valves reduce fluid erosion and minimize pressure drop
- Available in two sizes: 70mm and 90mm
- PDC drillable composite plastic materials for valve components
- Standard seal rated to 150°C with optional 204°C seal
- Valve body molded with fiber phenolic (70MPa and 204°C seal)
- Springs made from phosphor bronze C510 material (high restoring force and drillable)
- Plunger sealtop molded with HNBR (70MPa and 204°C seal)

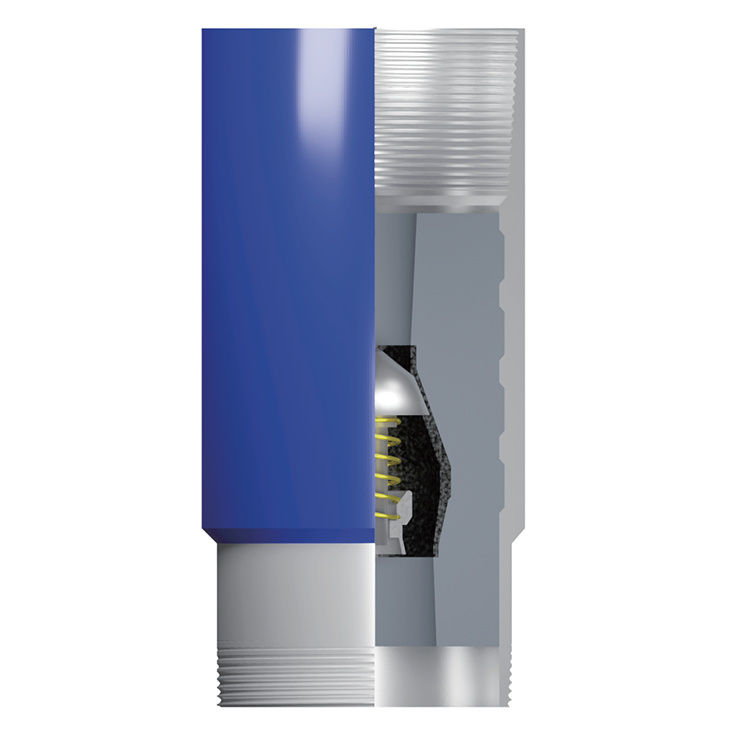

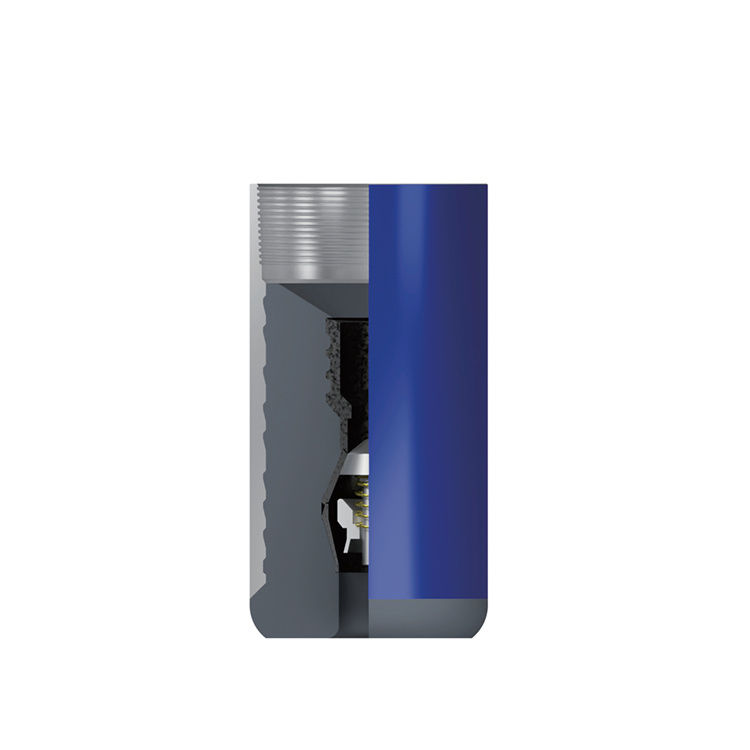

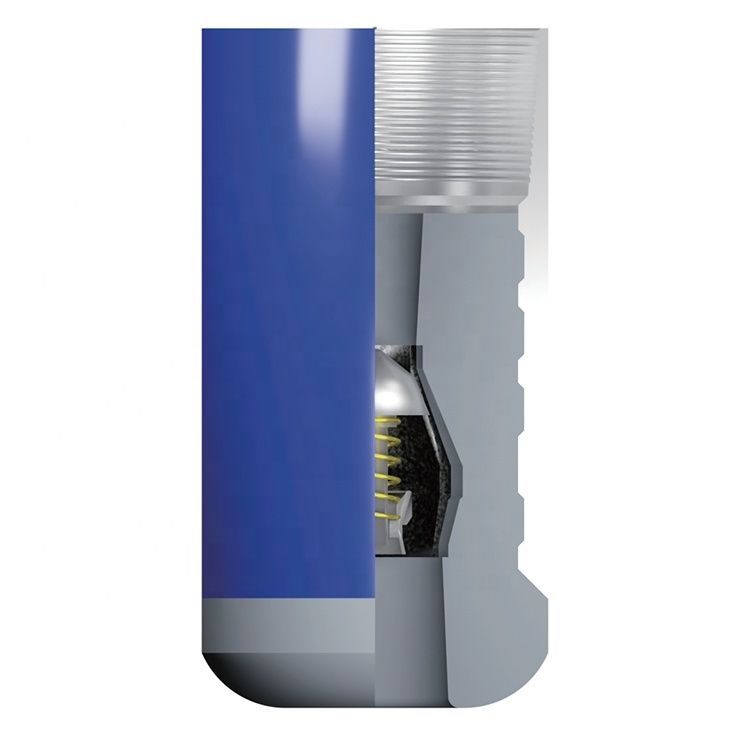

Product Images
Detailed Specifications
| Name | Size(in) | Bore O.D.(in) | Bore I.D.(in) | Min Bore Parameter(in) | Thread Type | lb(in²) |
| Float Collar | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
| Float Shoe | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
Manufacturing Facility
Production Equipment
Product Exhibition
Product Packaging
Frequently Asked Questions
Q1: When can I get the price?
A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.
Q2: Could I have prices of your products?
A: Absolutely. Please send us your inquiry via email, and you'll receive our response within 24 hours.
Q3: Can I get a lower price if I order large quantities?
A: Yes, we offer volume discounts for larger quantity orders.
Q4: Do you inspect the finished products?
A: Yes, our QC department conducts thorough inspections at each production stage and upon completion before shipping.
Q5: What about the lead time for mass production?
A: Lead times vary depending on order quantity and seasonal demand. We'll provide specific timelines when we receive your order details.
