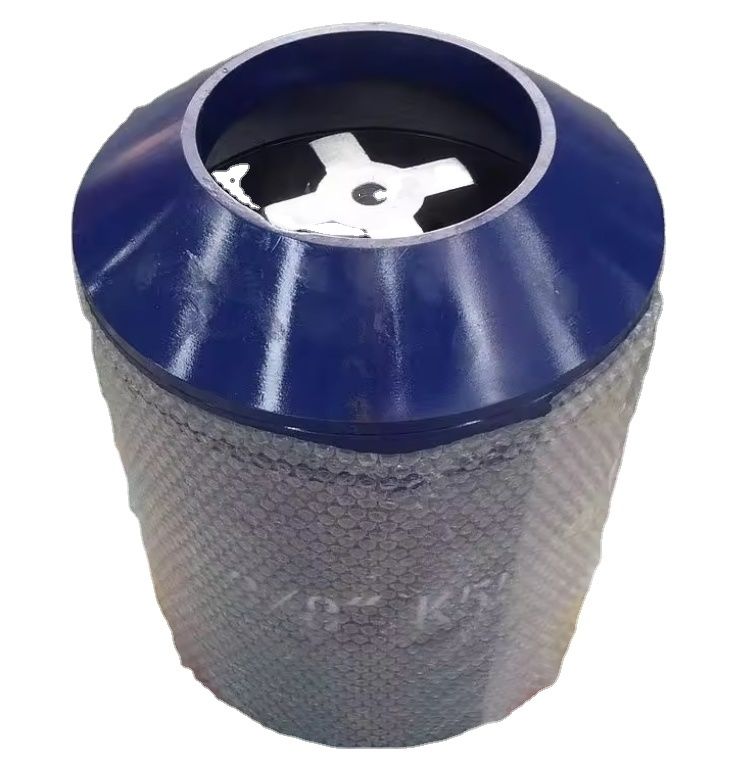

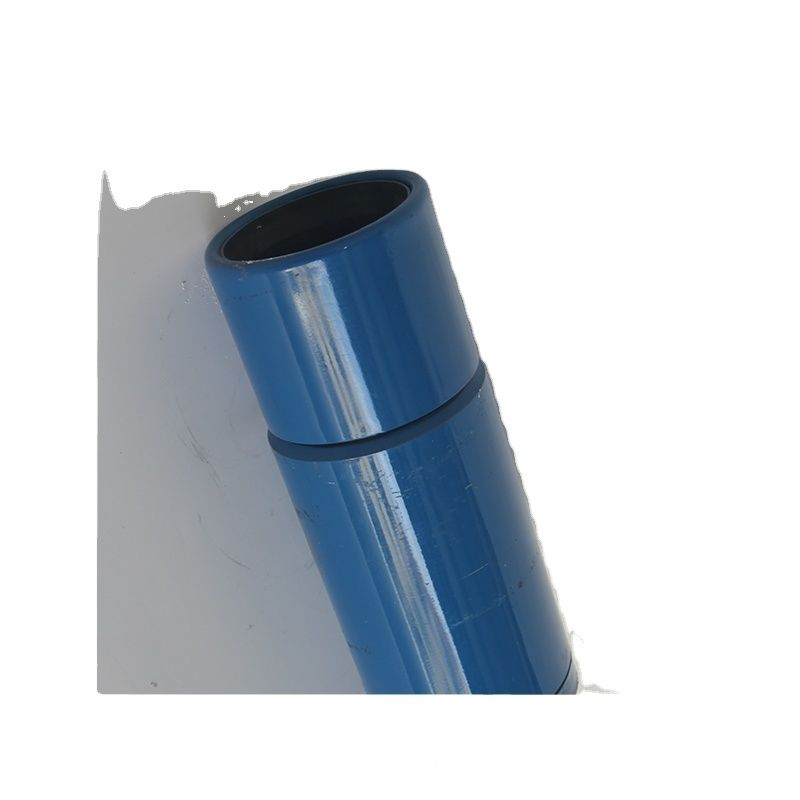

Double Valve Cementing Float Shoe 5 1/2in LCSG Thread for Well Drilling

MOQ:	1

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Gewicht:

2 kg

Kleptype:

Eenvoudige klep en dubbele klep

Machinetype:

Boorgereedschap

Type verwerking:

Smeden

Materiaal:

Staalkwaliteit

Threadtype:

EUE

Maat:

5 1/2 ", 7", 9 5/8 ", 13 3/8"

Boring OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Boring ID:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min boring:

2 ", 2 3/8"

Threadtype:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Drukbeoordeling:

4351 lb/in2, 3626 lb/in2

Type:

stevig

Kerncomponenten:

Ventiel

gebruik:

Goed boren

Markeren:

5 1/2in cementing float shoe

double valve float shoe for well drilling

LCSG thread cementing float equipment

Productomschrijving

Double Valve Cementing Offshore Onshore Float Shoe Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement. Specifications Name Size(in) Bore O.D.(in) Bore I.D.(in) Min
