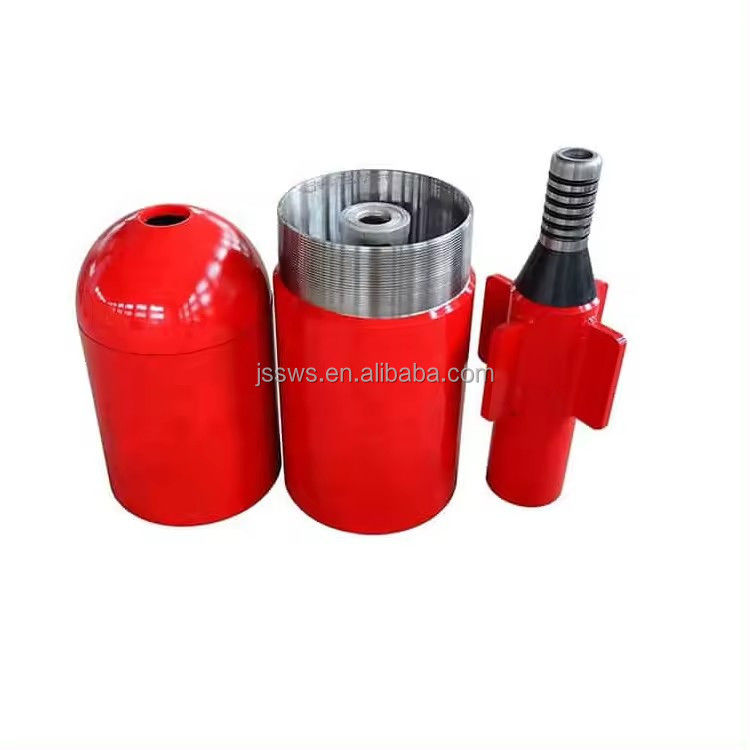

API Standard 2-3/8~20" BTC/LTC/Special Thread EU/NU Eccentric Nose Aluminum Alloy Float Shoe
Company Profile
CORPORATE BRIEF
We (SWS) are a professional company engaged in the development, manufacturing, sales, and service of downhole oil tools. Utilizing advanced downhole tool manufacturing technology from the U.S. and Canada, we provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields worldwide.
Our 78,000 sq ft manufacturing facility features modern CNC machining, fabrication and processing equipment, testing and inspection facilities, along with raw material and production storage.
Main Products
- Float collars and shoes
- Stage collars
- Liner hangers
- Packers
- Cement plugs
- Cement heads
- Centralizers
- Casing and tubing
- Pup joints
- Couplings
Certifications
Product Description
Float equipment serves as the backbone of casing equipment used during primary cementing operations. It guides the casing to total depth and prevents contaminated mud from entering the casing. Additionally, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures accurate cement slurry displacement.
Features high-flow valves to reduce fluid erosion and minimize pressure drop. Available in two sizes (70mm and 90mm) with PDC drillable composite plastic materials for valve components. Standard seal rated to 150°C with optional 204°C seal.
Technical Specifications:
- Valve body: Fiber phenolic, 70MPa and 204°C seal
- Spring: Canadian Victory Spring Company, phosphor bronze C510 material
- Plunger seal top: HNBR, 70MPa and 204°C seal
Specifications
| Name |
Size (in) |
Bore O.D. (in) |
Bore I.D. (in) |
Min Bore Parameter (in) |
Thread Type |
lb/in² |
| Float Collar |
5 1/2" |
6" |
4 3/4" |
2" |
5 1/2" LCSG |
4351 |
| 7" |
7 5/8" |
6 1/4" |
2 3/8" |
7" LCSG |
3626 |
| 9 5/8" |
10 5/8" |
8 5/8" |
2 3/8" |
9 5/8" LCSG |
3626 |
| 13 3/8" |
14 3/8" |
12 3/8" |
2 3/8" |
13 3/8" LCSG |
3626 |
| Float Shoe |
5 1/2" |
6" |
4 3/4" |
2" |
5 1/2" LCSG |
4351 |
| 7" |
7 5/8" |
6 1/4" |
2 3/8" |
7" LCSG |
3626 |
| 9 5/8" |
10 5/8" |
8 5/8" |
2 3/8" |
9 5/8" LCSG |
3626 |
| 13 3/8" |
14 3/8" |
12 3/8" |
2 3/8" |
13 3/8" LCSG |
3626 |
Our Factory
Device Image
Exhibition
Product Packaging
FAQ
Q1: When can I get the price?
A: We usually quote within 24 hours after receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.
Q2: Could I have prices of your products?
A: Welcome. Please feel free to send us an email. You will receive our reply within 24 hours.
Q3: Can I get a lower price if I order large quantities?
A: Yes, we offer discounted prices for larger quantity orders.
Q4: Do you inspect the finished products?
A: Yes, each production step and finished product undergoes inspection by our QC department before shipping.
Q5: What about the lead time for mass production?
A: Lead time depends on order quantity and the season when the order is placed.
