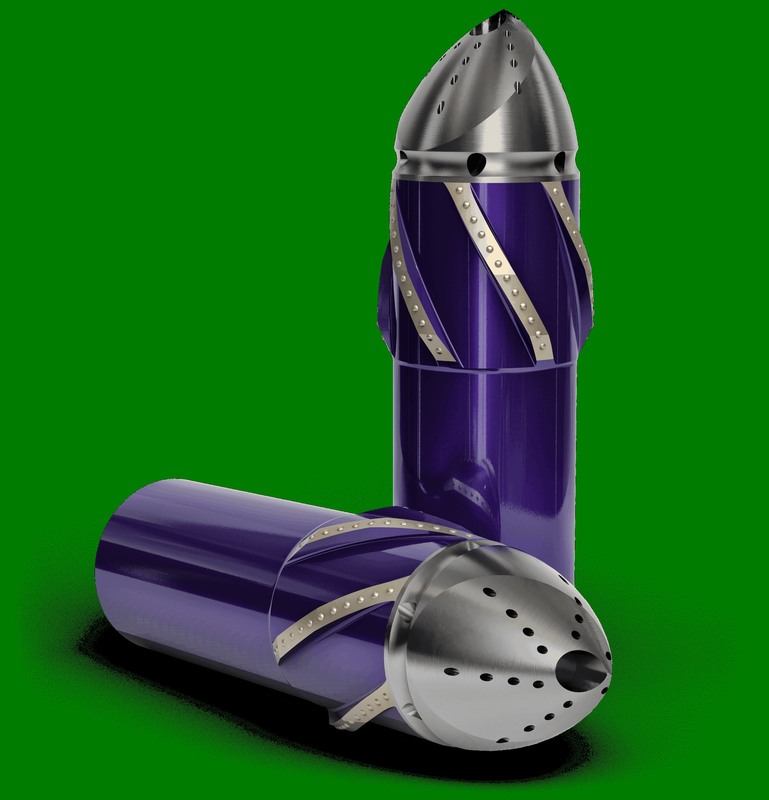

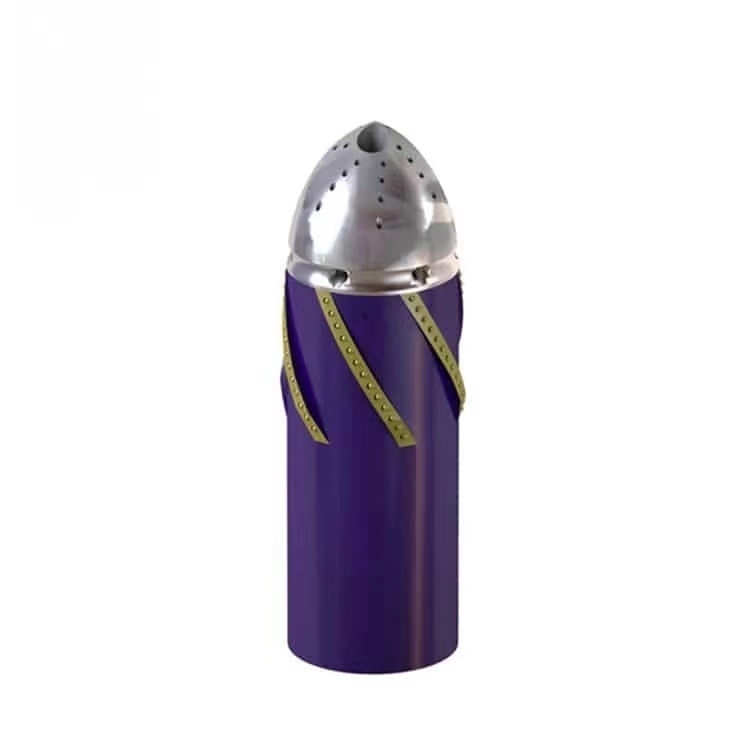

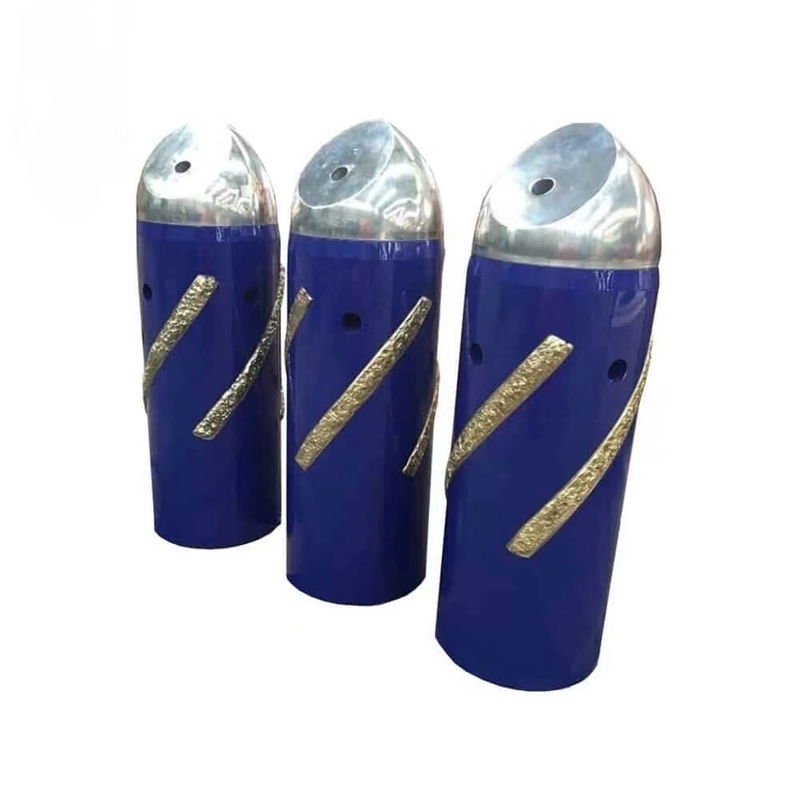

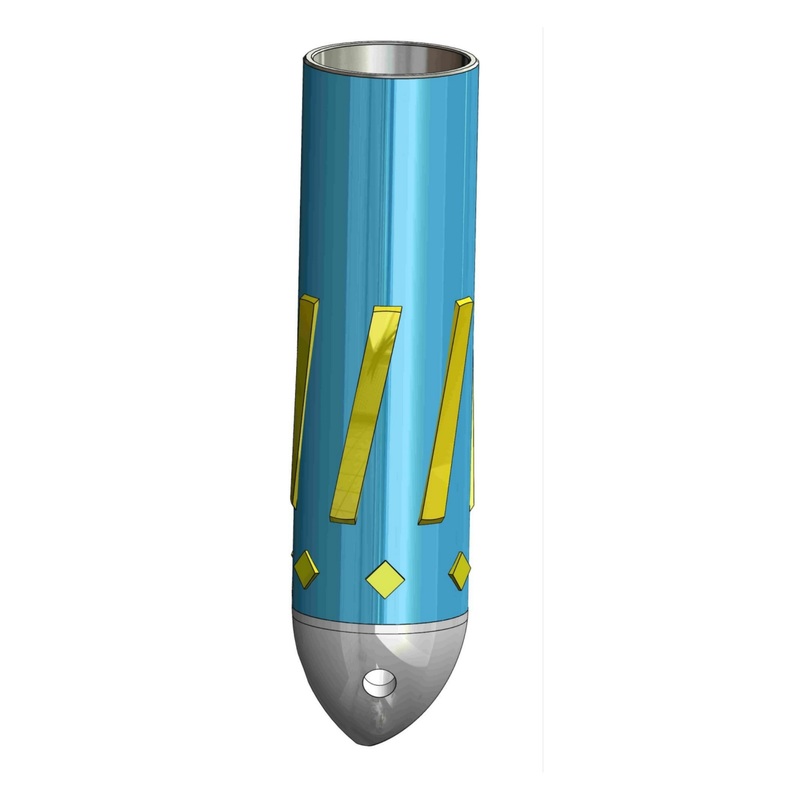

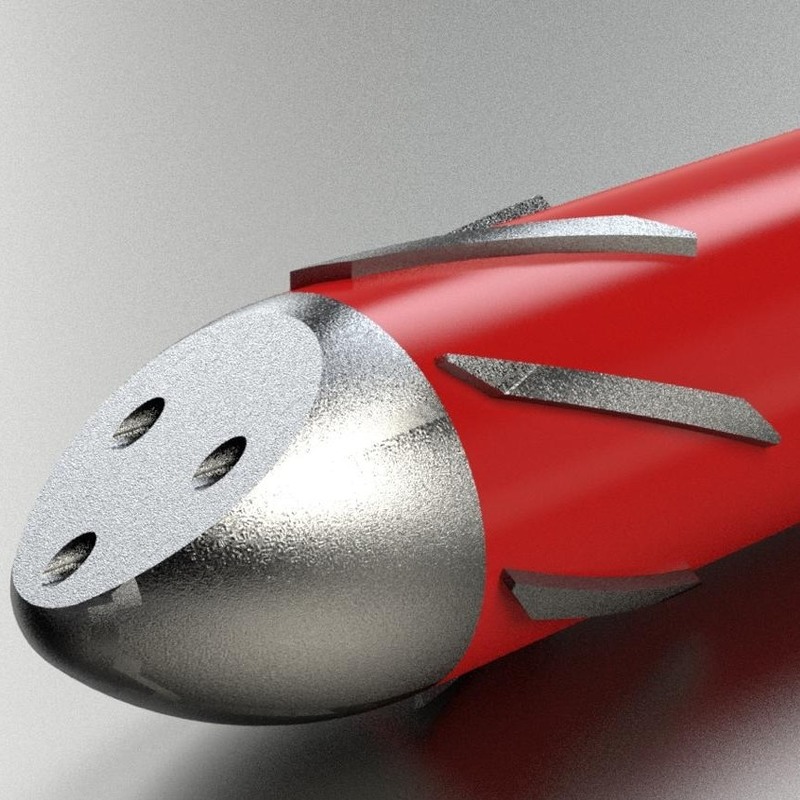

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Basic Properties
Place of Origin: Jiangsu, China
Brand Name: SWS
Trading Properties
Minimum Order Quantity: 1
Markeringen

De Schoen van de ruimervlotter en Vlotterkraag

Steek in Vlotterkraag het Cementeren

De Vlotterkraag van de ontvangersplaat
Specifications
Dimension: 50*30*30 Weight: 10 kg
Core Components: Ventiel Valve Type: Eenvoudige klep en dubbele klep
Processing Type: Smeden Specification: 2-3/8 ~ 20"
Thread Type: BTC\LTC\ Speciale draad\EU\NU Steel Grade: N80\L80\P110
Bore O.D.: 6 ", 7 5/8", 10 5/8 ", 14 3/8" Bore I.D.: 4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"
Min Bore: 2 ", 2 3/8" Thread Type: 5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG
Pressure Rating: 70mpa Temperature Rating: 204°C
Valve Size: 70 mm en 90 mm
High Light:

150°C Seal Float Shoe

,

204°C Seal Cementing Float Equipment

,

Nose Float Casing Float Shoe
Productomschrijving
API Standard Nose Float Shoe Cementing Tools
API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 0 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 1 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 2
Product Specifications
Name Size(in) Bore O.D.(in) Bore I.D.(in) Min Bore Parameter(in) Thread Type lb(in2)
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Product Features
Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.
Key Specifications:
  • Hi Flow valves to reduce fluid erosion and minimize pressure drop
  • Available in two sizes: 70mm and 90mm
  • PDC drillable composite plastic materials for valve components
  • Standard seal rated to 150°C with optional 204°C seal
  • Valve body molded with fiber phenolic, 70MPa and 204°C seal
  • Spring purchased from Canada Victory Spring Company (phosphor bronze C510 material)
  • High restoring force and drillable design
  • Plunger seal top molded with HNBR, 70MPa and 204°C seal
API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 3 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 4 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 5 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 6 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 7 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 8 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 9
Frequently Asked Questions
When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.
Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.
Can I get a lower price if I order large quantities?
Yes, cheaper prices are available for larger quantity orders.
Do you inspect the finished products?
Yes, each step of production and finished products will be inspected by our QC department before shipping.
What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
