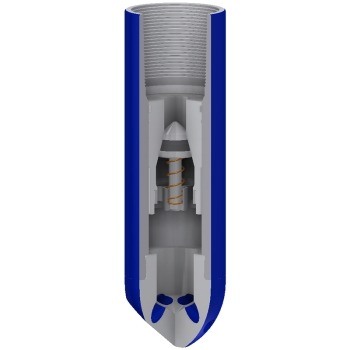

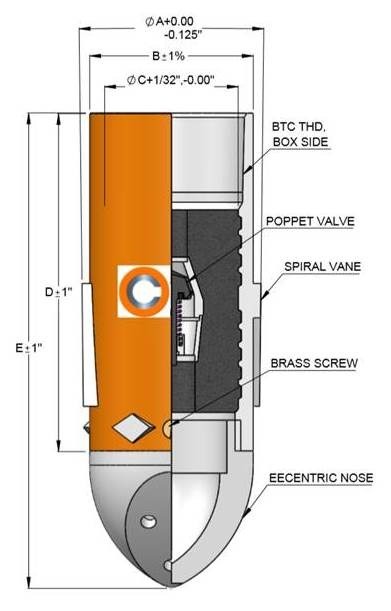

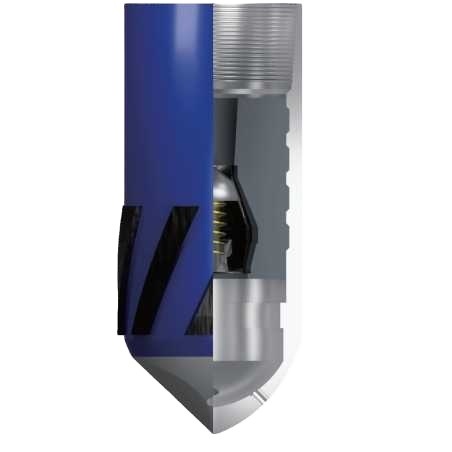

API Standard 7 5/8" Float Shoe with Multiple Flank Jets and 304 Stainless Steel Construction for Cementing Float Equipment
| Size: | 7 5/8" | Bore O.D.: | 7 5/8" |
| Bore I.D.: | 6 1/4 inch. | Min Bore: | 2 3/8“ |
| Thread Type: | 7"LCSG | Pressure Rating: | 3626 lb/in² |
| Valve Type: | enige klep | Material: | Roestvrij staal koolstofstaal/304 |
| Weight: | 5 kg | Processing Type: | Smeden |
| Core Components: | Ventiel | Connection Type: | LTC/BTC |
| API Standard: | K55 | Design Type: | Excentrische neus |
| Flank Jets: | Veelvoud | ||
| High Light: | 7 5/8" Float Shoe,304 Stainless Steel Float Shoe,Multiple Flank Jets Float Shoe |
||
| Name | Size(in) | Bore O.D.(in) | Bore I.D.(in) | Min Bore Parameter(in) | Thread Type | lb(in2) |
|---|---|---|---|---|---|---|
| Float Collar | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 | |
| Float Shoe | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
